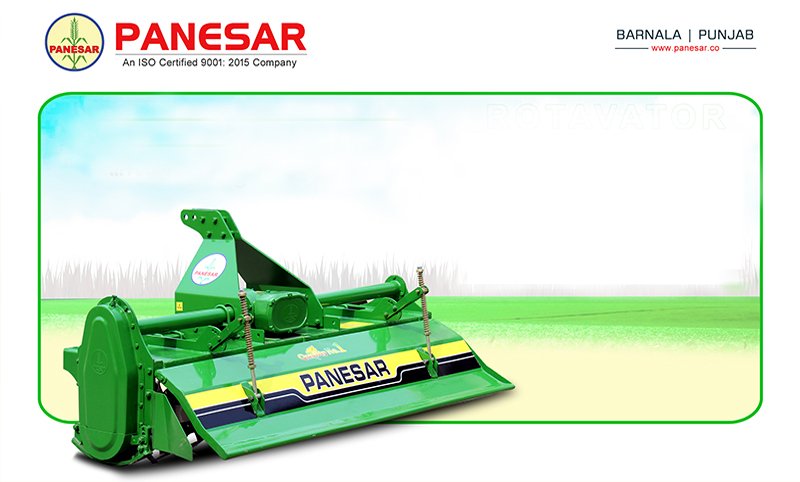

Rotavator

Rotavators by Panesar are available to fulfill requirement of our customers to prepare their agricultural land. Theserotavators are designed for tractors from 30 to 70 H.P. (5 Ft. to 7 Ft.) at the PTO shaft. Our rotavators ensure maximum output and is offered at industry's best prices. Some of the features are stated as under:
• Export Quality Heavy Duty Gear Box.
• Adjustable Trailing Board.
• Side Disk available as Optional.
• PTO Shaft Safety Cover.
• High Quality blades for Longer Life.
• Heavy Duty Steel Body made of Square Pipe.
• New Attractive Graphics.
• Large Area for Optimum Grain Cleaning.

Model	Panesar (5 feet)	Panesar (6 feet)	Panesar (7 feet)
Tractor Power	30 to 40 H.P.	40 to 50 H.P.	50 to 60 H.P.
Overall Width	175 cm	218 cm	240cm
Tillage Width	140 cm	180 cm	210cm
Gear Box	Multi/ Single Speed	Single Speed	Single Speed
Side Transmission	Gear/ Chain	Gear/ Chain	Gear/ Chain
P.T.O. Speed (RPM)	540	540	540
Rotar Speed (RPM)	250/200	250/200	250/200
No. of Blades	36	42	48
Gear Box Overload Protection	Sheer Bolt	Sheer Bolt	Sheer Bolt

Note: As our policy is that of continuos development specifications may change without any prior notince. For further details contact your nearest dealer.
