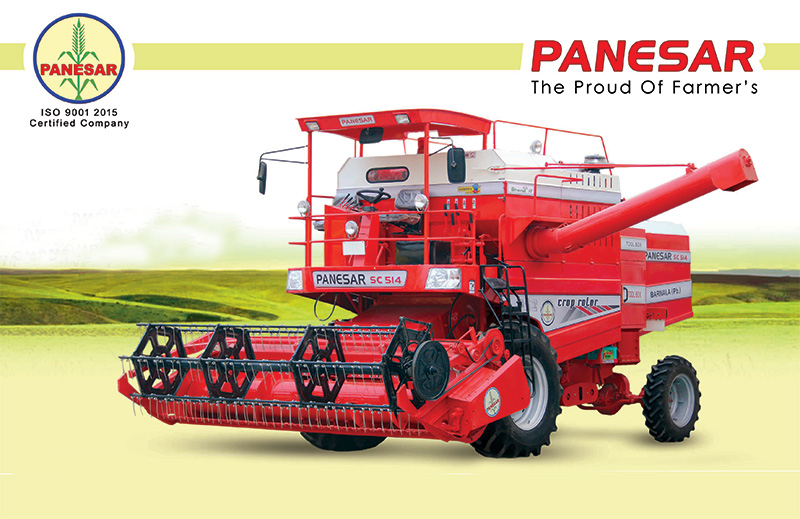

Self Harvester Combine SC 514 (4WD)

SC 514 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 514 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today's stringent emissions standards.

SC 514 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 514 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today's stringent emissions standards.

A.Engine Ashok Leyland
Model HGETIC3RD22
Power 101 HP at 2200 RPM
No. of Cylinder Six
Air Cleaner Dry
Cooling System Water Cooled
B. CLUTCH
Type of Clutch Single, Heavy Duty Dry Clutch
Dia (mm) 310
C. TRANSMISSION / DRIVE
No. of Gears 6 Forward, 2 Reverse
Gear Speeds (km/hr)
Forward L-----H
1st Gear 2-----4
1st Gear 4-----8
1st Gear 8-----20
Reverse 4-----8
D. CUTTER BAR MECHANISM
for Wheat, Paddy & Others
Width 4191 mm, (165")
Cutting Height (mm) 55-1250 mm
No. of blades 58
No. of Guards 57
Stroke (mm) 75
Reel (rpm) 26-61
Dia (mm) 1064
Feeder Housing Chain Type Feed Rack
E1. THRESHING MECHANISM W-----P-----M
Rasp Bar---Peg Toth---Rasp Bar
Width (mm) 1270-----1230-----1270
Diameter of Thresher Drum (mm) 585-----605-----585
Speed (rpm) 750-1020
Speed Adjustment By Means of Mechanical Aviator
E2. Concave
Clearance
Front (mm) 15 -45 ----- 15-45
Rear (mm) 8-30----- 10-40
Adjustment Mechanical
E3. STRAW WALKER
No. of Straw Walker 5
No. of Steps 6
Length (mm) 3850
Width (mm) 235
E4. CLEANING SIEVES
Area
Upper Sieve 1.363
Lower Sieve 0.688
F. CAPACITIES
Grain Tank 2.013
Fuel Tank(Ltr.) 304 Ltr.
G. BATTERY
No. of Batteries 2
Capacity & Rating of each 12 V, 88 Ah
H. TYRE
Front (18.4-30) 14pr
Rear (7.50-16) 12pr
MAIN DIMENSION
In Working:
Length (mm) 8620
Width (mm) 6390
Height (mm) 4190
Ground Clearance (mm) 420
In Transport
Length (mm) 11820
Width (mm) 3250
Height (mm) 4100
Weight (Kg.) 8670 Kgs

SC 514 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 514 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today's stringent emissions standards.
