Track Combine Harvester TC 731 (Axial Flow)

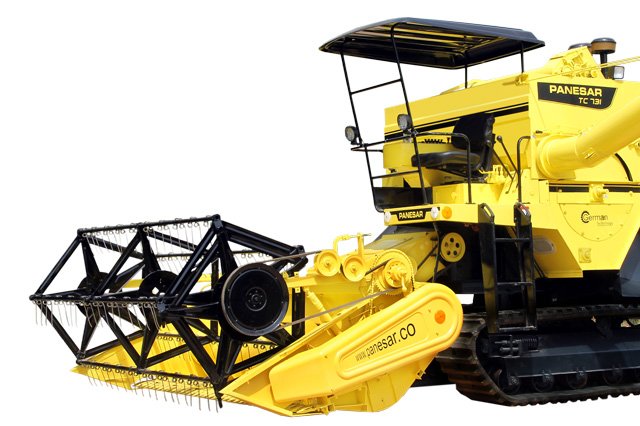

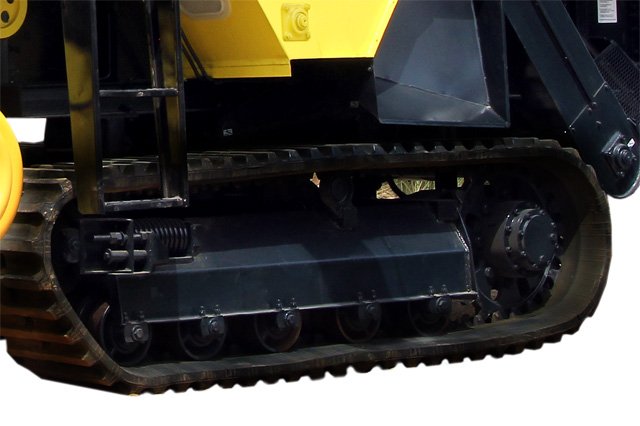

The PANESAR Track combine (TAF) has revolutionized mechanized rice harvesting. The compact design and low weight make for good maneuverability in small fields. Reliable rubber tracks are ideal for rice paddies. As well as making harvesting quick and easy, the PANESAR Track (TAF) delivers excellent grain quality and negligible losses.

Model	Panesar TC 731
Engine	Ashok Leyland
Engine Model	ALUW-04D
Power	76 BHP at 2200 RPM
No. of Cylinder	Four
Air Cleaner	Dry Type
Cooling System	Water Cooled
Structural Type	Axial Flow
TRANSMISSION / DRIVE	Hydrostatic Transmission comprising of hydracullic variable displacement, Double Pump and two fixed motors through double stage reduction.
CUTTER BAR MECHANISM
Cutter Bar Width	2210 mm (7.25 Feet)
Cutting Range	30 to 830 mm
Up / Down Control	Up / Down Control

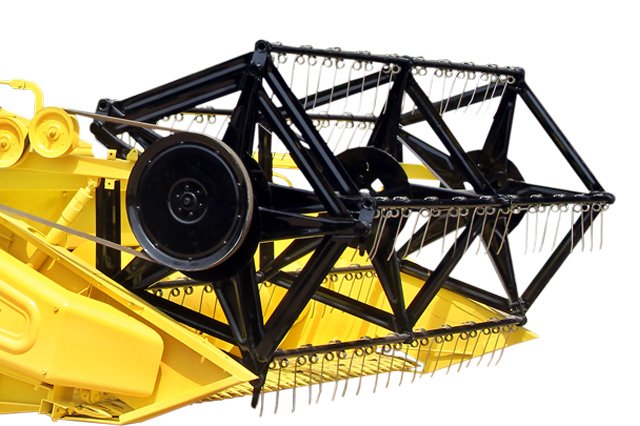

Reel (Diameter x Width)	930 mm x 2120 mm
Reel Drive	Through V-Belt
Reel Up / Down Control	Hydraulic System
Feeder Housing	Chain Type
THRESHING MECHANISM (Double Drum)
Threshing System	Axial Flow
Threshing Drum Length	585 mm, 1250 mm
Dia of Thresher Drum	483 mm, 550 mm
Threshing Drum Speed	750RPM, 800 RPM
CLEANING SIEVES
Upper Sieve	495 mm
Lower Sieve	1397 mm
ELECTRICAL SYSTEM	12V, 120Ah Battery

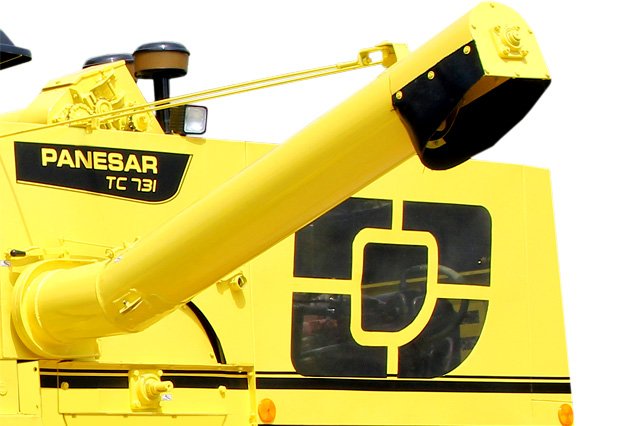

GRAIN OUTLET
Discharghing Height	2400 mm
Discharghing Length	1950 mm
CAPACITIES
Grain Tank	785 kg Paddy
Fuel Tank	85 Ltr.
MAIN DIMENSIONS
Length (Including cutterbar	5870 mm
Width	2250 mm
Height	2670 mm
Ground Clearance	440 mm
Total Weight	3870 kg. Approx
